springcloud---2

时间：2018-06-02 17:39:55 阅读：224 评论：0 收藏：0 [点我收藏+]

标签：.sql password autowire autowired div int type health 就是

技术分享图片

每一个都是独立的springboot工程。通过自己的ip和端口访问。

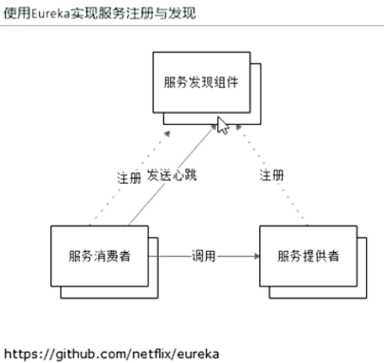

Eureka是服务发现组件，Eureka里面有一个服务注册表，存的是服务消费者和服务生产者的ip和端口。Eureka集群里面每个Eureka server也是一个Eureka client，因为他们之间要相互注册。

技术分享图片

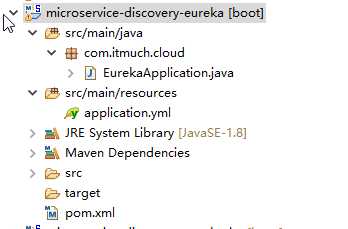

Eureka server:服务发现组件

Eureka client：服务消费者，服务提供者。他们要去操作服务发现组件的注册表。

技术分享图片

package com.itmuch.cloud;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.server.EnableEurekaServer;

@SpringBootApplication
@EnableEurekaServer //是一个EurekaServer
public class EurekaApplication {
  public static void main(String[] args) {
    SpringApplication.run(EurekaApplication.class, args);
  }
}

security:
  basic:
    enabled: true
  user:
    name: user
    password: password123
server:
  port: 8761
eureka:
  client:

    #单机里面不把自己当成一eureka client
    register-with-eureka: false  #这里是单机eureka，不需要注册到别的eureka上面去
    fetch-registry: false #单机，不需要吧数据合并到别的eureka上面去

    service-url:
      defaultZone: http://user:password123@localhost:8761/eureka #跟Eureka通信的地址，后面的eureka不能少。
      #想把eureka发布到哪个url
      #之所以eureka server也要配置这个是因为每个eureka server里面也有一个eureka client.
      #因为eureka集群里面每个eureka server也是一个eureka client他们之间是需要相互通信同步注册表的。

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <parent>
        <groupId>com.itmuch.cloud</groupId>
        <artifactId>microservice-spring-cloud</artifactId>
        <version>0.0.1-SNAPSHOT</version>
    </parent>

    <artifactId>microservice-discovery-eureka</artifactId>
    <packaging>jar</packaging>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    </properties>

    <!-- spring-cloud-starter-eureka-server表示是一个eureka server
    spring-cloud-starter-eureka表示是一个eureka client -->
    <dependencies>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-eureka-server</artifactId>
        </dependency>
        <!-- 添加依赖才可以使用用户名和密码 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-security</artifactId>
        </dependency>
    </dependencies>

</project>

这时一个Eureka server，跑起来：localhost:8761/

Last 1000 since sinup：最近的1000个注册在上面的微服务。Instances currently registered with Eureka：注册在上面的微服务。General Info：eureka的信息，Instance Info：这个实例的信息，eureka的状态。

把其他服务注册到eureka上面去。

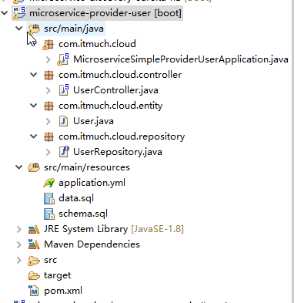

服务提供者（user微服务）：

技术分享图片

package com.itmuch.cloud;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
import org.springframework.cloud.netflix.eureka.EnableEurekaClient;

@SpringBootApplication
//将应用注册到eureka server上面去
@EnableEurekaClient //EurekaClient。@EnableDiscoveryClient这个注解说他是一个服务发现的client不一定使用的是eureka，可以使用类似于eureka的组件zk,consule
public class MicroserviceSimpleProviderUserApplication {

  public static void main(String[] args) {
    SpringApplication.run(MicroserviceSimpleProviderUserApplication.class, args);
  }
}

package com.itmuch.cloud.controller;

import java.util.ArrayList;
import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.cloud.client.ServiceInstance;
import org.springframework.cloud.client.discovery.DiscoveryClient;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RestController;

import com.google.common.collect.Lists;
import com.itmuch.cloud.entity.User;
import com.itmuch.cloud.repository.UserRepository;
import com.netflix.appinfo.InstanceInfo;
import com.netflix.discovery.EurekaClient;

@RestController
public class UserController {

  @Autowired
  private UserRepository userRepository;

  @Autowired
  private EurekaClient eurekaClient;

  @Autowired
  private DiscoveryClient discoveryClient;

  @GetMapping("/simple/{id}")
  public User findById(@PathVariable Long id) {
    return this.userRepository.findOne(id);
  }

  //http://localhost:7900/eureka-instance
  @GetMapping("/eureka-instance")
  public String serviceUrl() {
    InstanceInfo instance = this.eurekaClient.getNextServerFromEureka("MICROSERVICE-PROVIDER-USER", false);
    return instance.getHomePageUrl();//http://192.168.88.1:7900/ : 使用名称MICROSERVICE-PROVIDER-USER就可以知道ip和端口。
  }

  @GetMapping("/instance-info")
  public ServiceInstance showInfo() {
    ServiceInstance localServiceInstance = this.discoveryClient.getLocalServiceInstance();
    //{"host":"192.168.88.1","port":7900,"metadata":{"zone":"ABC","lilizhou":"BBC"},"uri":"http://192.168.88.1:7900","secure":false,"serviceId":"microservice-provider-user"}
    return localServiceInstance;
  }

  @PostMapping("/user")
  public User postUser(@RequestBody User user) {
    return user;
  }

  // 该请求不会成功
  @GetMapping("/get-user")
  public User getUser(User user) {
    return user;
  }

  @GetMapping("list-all")
  public List<User> listAll() {
    ArrayList<User> list = Lists.newArrayList();
    User user = new User(1L, "zhangsan");
    User user2 = new User(2L, "zhangsan");
    User user3 = new User(3L, "zhangsan");
    list.add(user);
    list.add(user2);
    list.add(user3);
    return list;

  }
}

package com.itmuch.cloud.repository;

import org.springframework.data.jpa.repository.JpaRepository;
import org.springframework.stereotype.Repository;

import com.itmuch.cloud.entity.User;

@Repository
public interface UserRepository extends JpaRepository<User, Long> {

}

server:
  port: 7900
spring:
  jpa:
    generate-ddl: false
    show-sql: true
    hibernate:
      ddl-auto: none
  datasource:
    platform: h2
    schema: classpath:schema.sql
    data: classpath:data.sql
  application:
    name: microservice-provider-user  #这个微服务在eureka上面的名字，全部小写
logging:
  level:
    root: INFO
    org.hibernate: INFO
    org.hibernate.type.descriptor.sql.BasicBinder: TRACE
    org.hibernate.type.descriptor.sql.BasicExtractor: TRACE
    com.itmuch: DEBUG
eureka:
  client:
    healthcheck:
      enabled: true  #健康检查，要添加actuator依赖
    serviceUrl:
      #eureka server的地址
      defaultZone: http://user:password123@localhost:8761/eureka
  instance:
    prefer-ip-address: true  #默认主机名访问的，配置这个就可以通过ip访问，
    #将服务名字ip端口都显示上去
    instance-id: ${spring.application.name}:${spring.cloud.client.ipAddress}:${spring.application.instance_id:${server.port}}
    metadata-map:
      zone: ABC      # eureka可以理解的元数据
      lilizhou: BBC  # 不会影响客户端行为
    lease-renewal-interval-in-seconds: 5

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <artifactId>microservice-provider-user</artifactId>
    <packaging>jar</packaging>

    <name>microservice-provider-user</name>
    <description>Demo project for Spring Boot</description>

    <parent>
        <groupId>com.itmuch.cloud</groupId>
        <artifactId>microservice-spring-cloud</artifactId>
        <version>0.0.1-SNAPSHOT</version>
    </parent>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-jpa</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>com.h2database</groupId>
            <artifactId>h2</artifactId>
            <scope>runtime</scope>
        </dependency>

        <!-- 其他依赖正常加，spring-cloud-starter-eureka后面没有server表示是一个client -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-eureka</artifactId>
        </dependency>

        <!-- 监控和管理生产环境的模块
        http://localhost:7900/env：可以查看环境
        http://localhost:7900/health：当前应用的健康状态
         -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
    </dependencies>

</project>

新增一个连接，这就是服务注册表的内容

技术分享图片

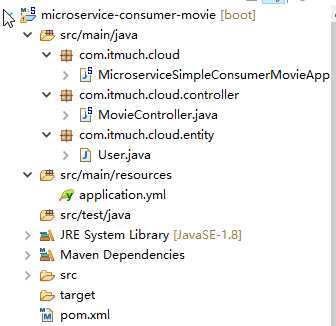

服务消费者（movie微服务）：

技术分享图片

package com.itmuch.cloud;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.EnableEurekaClient;
import org.springframework.context.annotation.Bean;
import org.springframework.web.client.RestTemplate;

@SpringBootApplication
@EnableEurekaClient
public class MicroserviceSimpleConsumerMovieApplication {

  @Bean  //方法名就是实例化后的对象的名字
  public RestTemplate restTemplate() {
    return new RestTemplate();
  }

  public static void main(String[] args) {
    SpringApplication.run(MicroserviceSimpleConsumerMovieApplication.class, args);
  }
}

package com.itmuch.cloud.controller;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.client.RestTemplate;

import com.itmuch.cloud.entity.User;

@RestController
public class MovieController {
  @Autowired
  private RestTemplate restTemplate;

  //user: userServicePath: http://localhost:7900/simple/ (服务提供者user的地址)
  //这里还是直接调用的是用户微服务的ip和地址
  //要通过eureka来调用，多个用户微服务要有负载均衡
  @Value("${user.userServicePath}")
  private String userServicePath;

  @GetMapping("/movie/{id}")
  public User findById(@PathVariable Long id) {
    return this.restTemplate.getForObject(this.userServicePath + id, User.class);
  }
}

spring:
  application:
    name: microservice-consumer-movie
server:
  port: 7901
user:
  userServicePath: http://localhost:7900/simple/
eureka:
  client:
    healthcheck:
      enabled: true
    serviceUrl:
      defaultZone: http://user:password123@localhost:8761/eureka
  instance:
    prefer-ip-address: true

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <artifactId>microservice-consumer-movie</artifactId>
    <packaging>jar</packaging>

    <parent>
        <groupId>com.itmuch.cloud</groupId>
        <artifactId>microservice-spring-cloud</artifactId>
        <version>0.0.1-SNAPSHOT</version>
    </parent>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-eureka</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
    </dependencies>
</project>
