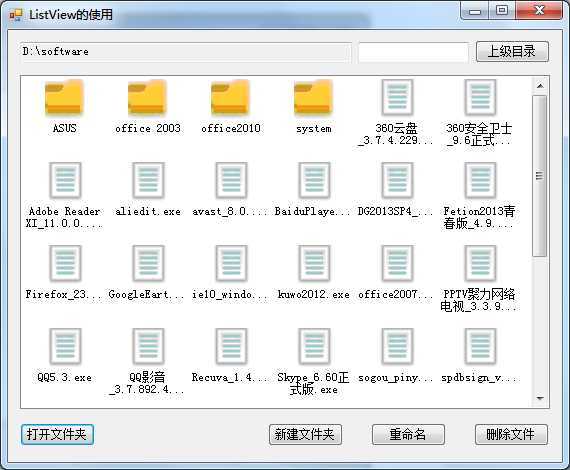

C#winform中ListView的使用

  1 using System;
  2 using System.Collections.Generic;
  3 using System.ComponentModel;
  4 using System.Data;
  5 using System.Drawing;
  6 using System.Linq;
  7 using System.Text;
  8 using System.Windows.Forms;
  9 using System.IO;
 10
 11 namespace Controls
 12 {
 13     public partial class MainForm : Form
 14     {
 15         #region 成员变量
 16         /// <summary>
 17         /// 用于递归计算文件夹大小
 18         /// </summary>
 19         private long folderSize = 0;
 20
 21         /// <summary>
 22         ///打开文件夹根路径
 23         /// </summary>
 24         private string rootPath = string.Empty;
 25         #endregion
 26
 27         #region 初期化
 28         /// <summary>
 29         /// 默认构造函数
 30         /// </summary>
 31         public MainForm()
 32         {
 33             InitializeComponent();
 34             //给窗体注册键盘事件
 35             this.KeyPreview = true;
 36         }
 37
 38         /// <summary>
 39         /// 初始化窗体,绑定事件
 40         /// </summary>
 41         /// <param name="sender"></param>
 42         /// <param name="e"></param>
 43         private void MainForm_Load(object sender, EventArgs e)
 44         {
 45             this.大图标ToolStripMenuItem.Click += new System.EventHandler(this.ToolStripMenuItem_Click);
 46             this.详细信息ToolStripMenuItem.Click += new System.EventHandler(this.ToolStripMenuItem_Click);
 47             this.平铺ToolStripMenuItem.Click += new System.EventHandler(this.ToolStripMenuItem_Click);
 48             this.小图标ToolStripMenuItem.Click += new System.EventHandler(this.ToolStripMenuItem_Click);
 49             this.列表ToolStripMenuItem.Click += new System.EventHandler(this.ToolStripMenuItem_Click);
 50         }
 51         #endregion
 52
 53         #region 事件处理
 54         /// <summary>
 55         /// 搜索框符合条件的人员
 56         /// </summary>
 57         /// <param name="sender"></param>
 58         /// <param name="e"></param>
 59         private void btnSearch_Click(object sender, EventArgs e)
 60         {
 61             AddItemsToListView(txtPath.Text, txtSearch.Text.Trim());
 62             AddHeaderToListView(this.lvwData);
 63         }
 64
 65         /// <summary>
 66         /// 给搜索框添加Enter快捷键
 67         /// </summary>
 68         /// <param name="sender"></param>
 69         /// <param name="e"></param>
 70         private void MainForm_KeyDown(object sender, KeyEventArgs e)
 71         {
 72             //搜索框获得焦点且按下Enter键时，执行搜索
 73             if (txtSearch.Focused && e.KeyCode == Keys.Enter)
 74             {
 75                 this.btnSearch_Click(sender, e);
 76             }
 77         }
 78
 79         /// <summary>
 80         /// 返回上级目录
 81         /// </summary>
 82         /// <param name="sender"></param>
 83         /// <param name="e"></param>
 84         private void btnUp_Click(object sender, EventArgs e)
 85         {
 86             if (txtPath.Text == rootPath || !txtPath.Text.Contains("\\"))
 87             {
 88                 return;
 89             }
 90             //找到文件夹上级目录的绝对路径
 91             txtPath.Text = txtPath.Text.Substring(0, txtPath.Text.LastIndexOf("\\"));
 92             AddItemsToListView(txtPath.Text);
 93             AddHeaderToListView(this.lvwData);
 94         }
 95
 96         /// <summary>
 97         /// 打开文件夹，显示文件夹
 98         /// </summary>
 99         /// <param name="sender"></param>
100         /// <param name="e"></param>
101         private void btnFolder_Click(object sender, EventArgs e)
102         {
103             DialogResult dr = fbdData.ShowDialog();
104             string path = fbdData.SelectedPath.ToString();
105             if (dr == DialogResult.OK && path != "")
106             {
107                 rootPath = path;
108                 txtPath.Text = path;
109             }
110         }
111
112         /// <summary>
113         /// 新建文件夹，选中文件夹
114         /// </summary>
115         /// <param name="sender"></param>
116         /// <param name="e"></param>
117         private void btnAdd_Click(object sender, EventArgs e)
118         {
119             string fullpath = string.Empty;
120             AddForm addForm = new AddForm(btnAdd.Text);
121             addForm.ShowDialog();
122             if (addForm.ButtonFlag)
123             {
124                 fullpath = txtPath.Text + "\\" + addForm.TxtName;
125             }
126             else
127             {
128                 return; //排除关闭窗口异常
129             }
130             try
131             {
132                 if (Directory.Exists(fullpath))
133                 {
134                     MessageBox.Show("该文件名已经存在！", "提示");
135                     return;
136                 }
137                 Directory.CreateDirectory(fullpath);
138                 AddItemsToListView(txtPath.Text);
139                 AddHeaderToListView(this.lvwData);
140             }
141             catch (NullReferenceException ex)
142             {
143                 MessageBox.Show(ex.Message, "提示");
144             }
145             finally
146             {
147                 //选中新增的项，并显示在视野范围内
148                 for (int i = 0; i < lvwData.Items.Count; i++)
149                 {
150                     if (lvwData.Items[i].Tag.ToString() == fullpath)
151                     {
152                         //先设置ListView选中
153                         lvwData.Focus();
154                         lvwData.Items[i].Selected = true;
155                         //在视野范围内显示
156                         lvwData.EnsureVisible(i);
157                         break;
158                     }
159                 }
160             }
161         }
162
163         /// <summary>
164         /// 重命名文件夹
165         /// </summary>
166         /// <param name="sender"></param>
167         /// <param name="e"></param>
168         private void btnRename_Click(object sender, EventArgs e)
169         {
170             if (lvwData.SelectedItems.Count <= 0)
171             {
172                 return;
173             }
174             string fullName = lvwData.SelectedItems[0].Tag.ToString();
175             string path = fullName.Substring(0, fullName.LastIndexOf("\\") + 1);//文件路径
176             string suffix = GetSuffixName(fullName);//后缀名
177             //文件名或文件夹名
178             string fileName = string.Empty;
179             if (suffix != string.Empty)
180             {
181                 fileName = fullName.Substring(fullName.LastIndexOf("\\") + 1,
182                         fullName.LastIndexOf(".") - fullName.LastIndexOf("\\") - 1);//文件名
183             }
184             else
185             {
186                 fileName = fullName.Substring(fullName.LastIndexOf("\\") + 1);//文件夹名
187             }
188             string fullPath = string.Empty;
189             AddForm addForm = new AddForm(btnRename.Text, fileName);
190             addForm.ShowDialog();
191             if (suffix != string.Empty)
192             {
193                 fullPath = path + addForm.TxtName + "." + suffix;
194             }
195             else
196             {
197                 fullPath = path + addForm.TxtName;
198             }
199             //直接关闭窗口时
200             if (!addForm.ButtonFlag)
201             {
202                 return;
203             }
204             try
205             {
206                 //重命名文件夹
207                 if (suffix == string.Empty)
208                 {
209                     if (Directory.Exists(fullPath))
210                     {
211                         MessageBox.Show("该文件名已经存在！", "提示");
212                         return;
213                     }
214                     Directory.Move(fullName, fullPath);
215                 }
216                 //重命名文件
217                 else
218                 {
219                     if (File.Exists(fullPath))
220                     {
221                         MessageBox.Show("该文件名已经存在！", "提示");
222                         return;
223                     }
224                     File.Move(fullName, fullPath);
225                 }
226                 AddItemsToListView(txtPath.Text);
227                 AddHeaderToListView(this.lvwData);
228             }
229             catch (NullReferenceException ex)
230             {
231                 MessageBox.Show(ex.Message);
232             }
233         }
234
235         /// <summary>
236         /// 删除文件夹
237         /// </summary>
238         /// <param name="sender"></param>
239         /// <param name="e"></param>
240         private void btnDelete_Click(object sender, EventArgs e)
241         {
242             int count = lvwData.SelectedItems.Count;
243             if (count <= 0)
244             {
245                 return;
246             }
247             DialogResult result = MessageBox.Show("你确定删除这" + count + "项吗？", "提示",
248                                     MessageBoxButtons.YesNo, MessageBoxIcon.Question);
249             if (result == DialogResult.Yes)
250             {
251                 string path;
252                 ListViewItem selectitem;
253                 for (int i = 0; i < lvwData.SelectedItems.Count; ) //此处不能i++
254                 {
255                     selectitem = lvwData.SelectedItems[i];
256                     path = selectitem.Tag.ToString();
257                     lvwData.Items.Remove(selectitem);
258                     if (File.Exists(path))
259                     {
260                         File.Delete(path);
261                     }
262                     else if (Directory.Exists(path))
263                     {
264                         Directory.Delete(path, true);
265                     }
266                     lvwData.Update();
267                 }
268             }
269         }
270
271         /// <summary>
272         /// List选中项时发生
273         /// </summary>
274         /// <param name="sender"></param>
275         /// <param name="e"></param>
276         private void lvwData_ItemActivate(object sender, EventArgs e)
277         {
278             ListView lv = (ListView)sender;
279             if (lv.SelectedItems.Count <= 0)
280             {
281                 return;
282             }
283             string filename = lv.SelectedItems[0].Tag.ToString();
284             //如果是文件夹，就打开它
285             if (Directory.Exists(filename))
286             {
287                 AddItemsToListView(filename);
288                 AddHeaderToListView(this.lvwData);
289                 //获取打开的文件夹路径
290                 txtPath.Text = filename;
291             }
292             //如果是文件，就执行它
293             else
294             {
295                 System.Diagnostics.Process.Start(filename);
296             }
297         }
298
299         /// <summary>
300         /// 根据路径的后缀名控制按钮的状态
301         /// </summary>
302         /// <param name="sender"></param>
303         /// <param name="e"></param>
304         private void txtPath_TextChanged(object sender, EventArgs e)
305         {
306             AddItemsToListView(txtPath.Text);
307             AddHeaderToListView(this.lvwData);
308         }
309
310         /// <summary>
311         /// ListView列表显示样式
312         /// </summary>
313         /// <param name="sender"></param>
314         /// <param name="e"></param>
315         private void ToolStripMenuItem_Click(object sender, EventArgs e)
316         {
317             ToolStripMenuItem tsMenumItem = sender as ToolStripMenuItem;
318             if (tsMenumItem.Checked)
319             {
320                 return;//已经选中则返回
321             }
322             else
323             {
324                 //清除勾选的右键菜单项
325                 ClearCheckState(cmsStyle);
326                 //勾选选中的右键菜单项
327                 tsMenumItem.Checked = true;
328             }
329             switch (tsMenumItem.Text)
330             {
331                 case "大图标":
332                     lvwData.View = View.LargeIcon;
333                     break;
334                 case "详细信息":
335                     lvwData.View = View.Details;
336                     break;
337                 case "小图标":
338                     lvwData.View = View.SmallIcon;
339                     break;
340                 case "列表":
341                     lvwData.View = View.List;
342                     break;
343                 case "平铺":
344                     lvwData.View = View.Tile;
345                     break;
346             }
347         }
348
349         /// <summary>
350         /// 清除勾选的右键菜单项
351         /// </summary>
352         /// <param name="cms">右键菜单</param>
353         /// <param name="clearAll">是否全部清除</param>
354         private void ClearCheckState(ContextMenuStrip cms, bool clearAll = false)
355         {
356             ToolStripMenuItem tsMenumItemTemp;
357             for (int i = 0; i < cms.Items.Count; i++)
358             {
359                 if (!(cms.Items[i] is ToolStripMenuItem))
360                 {
361                     continue;
362                 }
363                 tsMenumItemTemp = cms.Items[i] as ToolStripMenuItem;
364                 if (tsMenumItemTemp.Checked)
365                 {
366                     tsMenumItemTemp.Checked = false;
367                     if (!clearAll)
368                     {
369                         break;
370                     }
371                 }
372             }
373         }
374         #endregion
375
376         #region 设置ListView的显示样式
377         /// <summary>
378         /// 根据后缀名，设置listview显示样式
379         /// </summary>
380         /// <param name="root">根节点</param>
381         /// <param name="keywords">搜索关键字</param>
382         private void AddItemsToListView(string root, string keywords = "")
383         {
384             //把listview里的所有选项与所有列名都删除
385             lvwData.Clear();
386             lvwData.BeginUpdate();
387             //文件
388             if (File.Exists(root))
389             {
390                 AddFileToListView(new FileInfo(root), keywords);
391             }
392             //文件夹
393             else
394             {
395                 DirectoryInfo dir = new DirectoryInfo(root);
396                 DirectoryInfo[] dirs = dir.GetDirectories();
397                 FileInfo[] files = dir.GetFiles();
398                 //把文件夹信息添加到listview的选项中
399                 foreach (DirectoryInfo directoryInfo in dirs)
400                 {
401                     AddFolderToListView(directoryInfo, keywords);
402                 }
403                 //把文件夹下文件信息添加到listview的选项中
404                 foreach (FileInfo fileInfo in files)
405                 {
406                     AddFileToListView(fileInfo, keywords);
407                 }
408             }
409             this.lvwData.EndUpdate();
410         }
411
412         /// <summary>
413         /// 将文件添加到ListView中显示
414         /// </summary>
415         /// <param name="fileInfo">文件全路径</param>
416         /// <param name="keywords">搜索关键字</param>
417         private void AddFileToListView(FileInfo fileInfo, string keywords)
418         {
419             ListViewItem lvi = new ListViewItem();//文件项
420             lvi.Tag = fileInfo.FullName;
421             lvi.Text = fileInfo.Name;
422             lvi.ImageIndex = imgLarge.Images.Count - 1;
423             if (keywords != "" && (!lvi.Text.Contains(keywords)))
424             {
425                 return;//搜索不到关键字，不将文件添加到ListView中显示
426             }
427             //文件的名称属性项
428             lvi.SubItems[0].Tag = lvi.Tag;
429             lvi.SubItems[0].Text = lvi.Text;
430             //文件大小属性项
431             ListViewItem.ListViewSubItem lvsi = new ListViewItem.ListViewSubItem();
432             lvsi.Tag = fileInfo.Length;
433             lvsi.Text = fileInfo.Length / 1024 + " KB";
434             lvi.SubItems.Add(lvsi);
435             //修改日期属性项
436             lvsi = new ListViewItem.ListViewSubItem();
437             lvsi.Tag = fileInfo.LastAccessTime.ToString();
438             lvsi.Text = fileInfo.LastAccessTime.ToString();
439             lvi.SubItems.Add(lvsi);
440             //添加文件
441             this.lvwData.Items.Add(lvi);
442         }
443
444         /// <summary>
445         /// 将文件夹添加到ListView中显示
446         /// </summary>
447         /// <param name="DirectoryInfo">文件夹</param>
448         /// <param name="keywords">搜索关键字</param>
449         private void AddFolderToListView(DirectoryInfo DirectoryInfo, string keywords)
450         {
451             ListViewItem lvi = new ListViewItem();
452             lvi.Tag = DirectoryInfo.FullName;
453             lvi.Text = DirectoryInfo.Name;//显示名称
454             lvi.ImageIndex = 0;
455             if (keywords != "" && (!lvi.Text.Contains(keywords)))
456             {
457                 return;//搜索不到关键字，不将文件夹添加到ListView中显示
458             }
459             // 文件夹的名称属性项
460             lvi.SubItems[0].Tag = lvi.Tag;
461             lvi.SubItems[0].Text = lvi.Text;
462             //文件夹大小属性项
463             ListViewItem.ListViewSubItem lvsi = new ListViewItem.ListViewSubItem();
464             lvsi.Tag = GetFolderSize(DirectoryInfo);
465             lvsi.Text = FormatFolderSize(folderSize);
466             folderSize = 0;//清零计算文件夹大小的变量
467             lvi.SubItems.Add(lvsi);
468             //修改日期属性项
469             lvsi = new ListViewItem.ListViewSubItem();
470             lvsi.Tag = DirectoryInfo.LastAccessTime.ToString();
471             lvsi.Text = DirectoryInfo.LastAccessTime.ToString();
472             lvi.SubItems.Add(lvsi);
473             //添加文件夹
474             this.lvwData.Items.Add(lvi);
475         }
476
477         /// <summary>
478         /// 递归计算文件夹的大小
479         /// </summary>
480         /// <param name="DirectoryInfo">文件夹</param>
481         /// <returns>文件夹大小</returns>
482         private long GetFolderSize(DirectoryInfo DirectoryInfo)
483         {
484             DirectoryInfo[] dirs = DirectoryInfo.GetDirectories();
485             FileInfo[] files = DirectoryInfo.GetFiles();
486             //是文件夹时，继续递归
487             if (dirs.Length > 0)
488             {
489                 foreach (DirectoryInfo dir in dirs)
490                 {
491                     GetFolderSize(dir);
492                 }
493             }
494             //是文件时，进行累加计算
495             foreach (FileInfo fi in files)
496             {
497                 folderSize = folderSize + fi.Length;
498             }
499             return folderSize;
500         }
501
502         /// <summary>
503         /// 将文件夹大小转化为直观的文字显示
504         /// </summary>
505         /// <param name="size">文件夹大小</param>
506         /// <returns>文件夹大小的文字表示</returns>
507         private string FormatFolderSize(long size)
508         {
509             if ((size >> 20) > 0)
510             {
511                 //保留两位小数
512                 return ((size >> 10) / 1024.0).ToString("F2") + " MB";
513             }
514             else
515             {
516                 return (size >> 10) + " KB";
517             }
518         }
519
520         /// <summary>
521         /// 为listview添加列标题
522         /// </summary>
523         private void AddHeaderToListView(ListView listView)
524         {
525             ColumnHeader ch = new ColumnHeader();
526             ch.Text = "文件名";
527             ch.Width = 120;
528             listView.Columns.Add(ch);
529
530             ch = new ColumnHeader();
531             ch.Width = 70;
532             ch.Text = "大小";
533             listView.Columns.Add(ch);
534
535             ch = new ColumnHeader();
536             ch.Text = "修改日期";
537             ch.Width = 140;
538             listView.Columns.Add(ch);
539         }
540         #endregion
541
542         #region 经常使用的公共方法
543         /// <summary>
544         /// 获取文件后缀名(小写)
545         /// </summary>
546         /// <param name="path">文件全路径或文件名</param>
547         public string GetSuffixName(string path)
548         {
549             string suffix = string.Empty;
550             if (path.Contains("."))
551             {
552                 suffix = path.Substring(path.LastIndexOf(".") + 1);//后缀名
553             }
554             return suffix.ToLower();
555         }
556
557         /// <summary>
558         /// 获取应用程序根路径
559         /// </summary>
560         public static string GetApplicationPath()
561         {
562             string path = Application.StartupPath;
563             string folderName = String.Empty;
564             while (folderName.ToLower() != "bin")
565             {
566                 path = path.Substring(0, path.LastIndexOf("\\"));
567                 folderName = path.Substring(path.LastIndexOf("\\") + 1);
568             }
569             return path.Substring(0, path.LastIndexOf("\\") + 1);
570         }
571         #endregion
572     }
573 }
