【转】簡單講講 USB Human Interface Device

#include "stdafx.h"
#include "HIDGet.h"
#include "HIDGetDlg.h"
#include "Process.h"

#ifdef _DEBUG
#define new DEBUG_NEW
#undef THIS_FILE
static char THIS_FILE[] = __FILE__;
#endif

#define WM_THREADDATA   WM_USER + 1
#define WM_READDATA     WM_USER + 2

/////////////////////////////////////////////////////////////////////////////
// CHIDGetDlg dialog
struct _ThreadData
{
    HWND   hWnd;
    HANDLE hDev;
    char   cBuf[9];
    HANDLE hReadFinished;
}ThreadData;

LRESULT CALLBACK ReadThreadWindowProc(HWND hWnd, UINT msg, WPARAM wParam, LPARAM lParam)
{
    BOOL bRet;

    ResetEvent(ThreadData.hReadFinished);
    OVERLAPPED ol;
    ol.hEvent = ThreadData.hReadFinished;
    ol.Offset = 0;
    ol.OffsetHigh = 0;

    DWORD wResult, wByteRead;
    switch(msg)
    {
    case WM_CLOSE:
        CancelIo(ThreadData.hDev);
        CloseHandle(ThreadData.hReadFinished);
        DestroyWindow(hWnd);
        break;

    case WM_DESTROY:
        PostQuitMessage(0);
        break;

    case WM_READDATA:
        //ReadFile(ThreadData.hDev, ThreadData.cBuf, 9, &wByteRead, &ol);

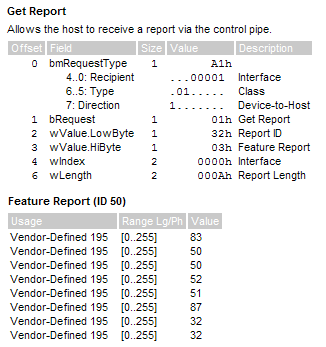

        ThreadData.cBuf[0] = 50;
        bRet = HidD_GetFeature(ThreadData.hDev, ThreadData.cBuf, 9);
        //wResult = WaitForSingleObject(ThreadData.hReadFinished, 1000);
        if(/*wResult == WAIT_OBJECT_0*/ bRet == TRUE)
            ::PostMessage(ThreadData.hWnd, WM_THREADDATA, 0, 0);
        else if(/*wResult == WAIT_TIMEOUT*/ bRet == FALSE)
            ::PostMessage(hWnd, WM_READDATA, 0, 0);
        break;
    default:
        return DefWindowProc(hWnd, msg, wParam, lParam);
    }

    return 0;
}

void ReadThread(CHIDGetDlg* pDlg)
{
    WNDCLASSEX wndclass;
    wndclass.cbSize        = sizeof(WNDCLASSEX);
    wndclass.cbClsExtra    = 0;
    wndclass.cbWndExtra    = 0 ;
    wndclass.hbrBackground = NULL;
    wndclass.hCursor       = NULL;
    wndclass.hIcon         = NULL;
    wndclass.hIconSm       = NULL;
    wndclass.hInstance     = GetModuleHandle(NULL);
    wndclass.lpfnWndProc   = ReadThreadWindowProc;
    wndclass.lpszClassName = "ReadThread";
    wndclass.lpszMenuName  = NULL;
    wndclass.style         = 0 ;
    RegisterClassEx(&wndclass);

    HWND hReadThreadWindow = ::CreateWindow("ReadThread", "", WS_POPUP,
                                            0, 0, 0, 0, NULL, NULL,
                                            GetModuleHandle(NULL), NULL);
    pDlg->SetReadThreadHWND(hReadThreadWindow);
    ThreadData.hReadFinished = CreateEvent(NULL, TRUE, FALSE, NULL);
    SetEvent(pDlg->m_hReadThreadCreated);

    // Start the message loop
    MSG msg;
    while(GetMessage(&msg, NULL, NULL, NULL))
    {
        TranslateMessage(&msg);
        DispatchMessage(&msg);
    }
}

CHIDGetDlg::CHIDGetDlg(CWnd* pParent /*=NULL*/) : CDialog(CHIDGetDlg::IDD, pParent)
{
    //{{AFX_DATA_INIT(CHIDGetDlg)
    // NOTE: the ClassWizard will add member initialization here
    //}}AFX_DATA_INIT
    // Note that LoadIcon does not require a subsequent DestroyIcon in Win32
    m_hIcon = AfxGetApp()->LoadIcon(IDR_MAINFRAME);
}

void CHIDGetDlg::DoDataExchange(CDataExchange* pDX)
{
    CDialog::DoDataExchange(pDX);
    //{{AFX_DATA_MAP(CHIDGetDlg)
    DDX_Control(pDX, IDC_DATA_ED, m_edData);
    //}}AFX_DATA_MAP
}

BEGIN_MESSAGE_MAP(CHIDGetDlg, CDialog)
    //{{AFX_MSG_MAP(CHIDGetDlg)
    ON_WM_PAINT()
    ON_WM_QUERYDRAGICON()
    ON_WM_CLOSE()
    //}}AFX_MSG_MAP
END_MESSAGE_MAP()

/////////////////////////////////////////////////////////////////////////////
// CHIDGetDlg message handlers

void CHIDGetDlg::SetReadThreadHWND(HWND hWnd)
{
    m_hReadThread = hWnd;
}

void CHIDGetDlg::CreateReadThread()
{
    ThreadData.hWnd = m_hWnd;
    m_hReadThreadCreated = CreateEvent(NULL, TRUE, FALSE, NULL);
    if(m_hReadThreadCreated)
    {
        DWORD threadID;
        if(_beginthreadex(NULL, 0, (unsigned int (WINAPI*)(PVOID))ReadThread,
            this, 0, (unsigned int*)&threadID) != 0)
            WaitForSingleObject(m_hReadThreadCreated, INFINITE);

        CloseHandle(m_hReadThreadCreated);
    }
}

BOOL CHIDGetDlg::OnInitDialog()
{
    CDialog::OnInitDialog();

    // Set the icon for this dialog.  The framework does this automatically
    //  when the application‘s main window is not a dialog
    SetIcon(m_hIcon, TRUE);         // Set big icon
    SetIcon(m_hIcon, FALSE);        // Set small icon

    // TODO: Add extra initialization here
    GetDeviceHandle();
    CreateReadThread();
    ::PostMessage(m_hReadThread, WM_READDATA, 0, 0);

    return TRUE;  // return TRUE  unless you set the focus to a control
}

// If you add a minimize button to your dialog, you will need the code below
//  to draw the icon.  For MFC applications using the document/view model,
//  this is automatically done for you by the framework.

void CHIDGetDlg::OnPaint()
{
    if (IsIconic())
    {
        CPaintDC dc(this); // device context for painting

        SendMessage(WM_ICONERASEBKGND, (WPARAM) dc.GetSafeHdc(), 0);

        // Center icon in client rectangle
        int cxIcon = GetSystemMetrics(SM_CXICON);
        int cyIcon = GetSystemMetrics(SM_CYICON);
        CRect rect;
        GetClientRect(&rect);
        int x = (rect.Width() - cxIcon + 1) / 2;
        int y = (rect.Height() - cyIcon + 1) / 2;

        // Draw the icon
        dc.DrawIcon(x, y, m_hIcon);
    }
    else
    {
        CDialog::OnPaint();
    }
}

// The system calls this to obtain the cursor to display while the user drags
//  the minimized window.
HCURSOR CHIDGetDlg::OnQueryDragIcon()
{
    return (HCURSOR) m_hIcon;
}

HANDLE CHIDGetDlg::GetDeviceHandle(GUID guid, HANDLE hDev, DWORD wDevice)
{
    SP_DEVICE_INTERFACE_DATA interfaceDev;
    interfaceDev.cbSize = sizeof(SP_DEVICE_INTERFACE_DATA);

    //Get interface
    DWORD wSize = 0;
    if(!SetupDiEnumDeviceInterfaces(hDev, NULL, &guid, wDevice, &interfaceDev)
        || SetupDiGetDeviceInterfaceDetail(hDev, &interfaceDev, NULL, 0, &wSize, NULL))
        return INVALID_HANDLE_VALUE;

    //Create buffer
    SP_INTERFACE_DEVICE_DETAIL_DATA *pDeviceDetail;
    pDeviceDetail = (SP_INTERFACE_DEVICE_DETAIL_DATA*)malloc(wSize);
    pDeviceDetail->cbSize = sizeof(SP_INTERFACE_DEVICE_DETAIL_DATA);

    if(!SetupDiGetDeviceInterfaceDetail(hDev, &interfaceDev, pDeviceDetail, wSize, &wSize, NULL))
    {
        free(pDeviceDetail);
        return INVALID_HANDLE_VALUE;
    }

    //Get device handle
    HANDLE hDevice = CreateFile(pDeviceDetail->DevicePath, GENERIC_READ,
        FILE_SHARE_READ, NULL, OPEN_EXISTING,
        FILE_FLAG_OVERLAPPED, NULL);

    free(pDeviceDetail);
    return hDevice;
}

void CHIDGetDlg::Show(CString str,long n)
{
    CString strN;
    strN.Format("%d", n);
    m_edData.ReplaceSel(str + ":" + strN + "\r\n");
}

void CHIDGetDlg::Show(CString str, CString s)
{
    m_edData.ReplaceSel(str + ": " + s + "\r\n");
}

void CHIDGetDlg::Clear()
{
    int nStart, nStop;
    m_edData.GetSel(nStart, nStop);
    m_edData.SetSel(0, nStop);
    m_edData.Clear();
}

void CHIDGetDlg::GetDeviceHandle()
{
    //Get HID GUID
    GUID guid;
    HidD_GetHidGuid(&guid);

    //Get all present HID interface
    HDEVINFO hDeviceInfo = SetupDiGetClassDevs(&guid, NULL, NULL,
                                               DIGCF_PRESENT|DIGCF_DEVICEINTERFACE);
    if(hDeviceInfo == INVALID_HANDLE_VALUE) return;

    Clear();
    DWORD w = 0;
    while(1) /*for(DWORD w=0; w<20; w++)*/
    {
        if((ThreadData.hDev = GetDeviceHandle(guid, hDeviceInfo, /*w*/w++))!=INVALID_HANDLE_VALUE)
        {
            HIDD_ATTRIBUTES att;
            if(HidD_GetAttributes(ThreadData.hDev, &att))
            {
                PHIDP_PREPARSED_DATA pPreData;
                if(HidD_GetPreparsedData(ThreadData.hDev, &pPreData))
                {
                    HIDP_CAPS cap;
                    if(HidP_GetCaps(pPreData, &cap)==HIDP_STATUS_SUCCESS)
                    {
                        if(att.VendorID==0x056D && att.ProductID==0x0002 && att.VersionNumber==0x7530)
                        {
                            if(cap.Usage==0x01 && cap.UsagePage==0x80)
                            {
                                HidD_FreePreparsedData(pPreData);
                                break;
                            }
                        }
                    }
                    HidD_FreePreparsedData(pPreData);
                }
            }
            CloseHandle(ThreadData.hDev);
            ThreadData.hDev = INVALID_HANDLE_VALUE;
        }

        if(w > 65536)
        {
            CloseHandle(ThreadData.hDev);
            ThreadData.hDev = INVALID_HANDLE_VALUE;
            break;
        }
    }

    SetupDiDestroyDeviceInfoList(hDeviceInfo);
}

void CHIDGetDlg::OnClose()
{
    // TODO: Add your message handler code here and/or call default
    ::SendMessage(m_hReadThread, WM_CLOSE, 0, 0);
    if(ThreadData.hDev!=INVALID_HANDLE_VALUE)
        CloseHandle(ThreadData.hDev);

    CDialog::OnClose();
}

LRESULT CHIDGetDlg::DefWindowProc(UINT message, WPARAM wParam, LPARAM lParam)
{
    // TODO: Add your specialized code here and/or call the base class
    static long nCount = 0;

    if(message == WM_THREADDATA)
    {
        CString str;

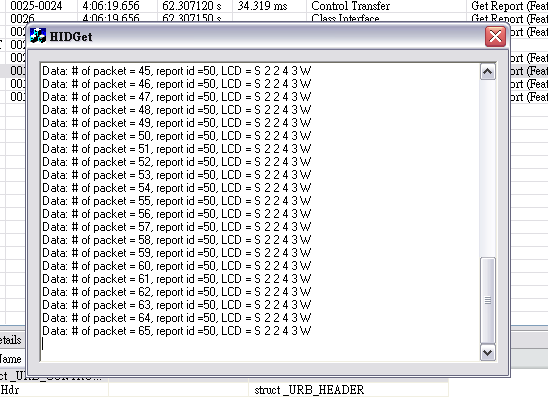

        str.Format("# of packet = %d, report id =%d, LCD = %c %c %c %c %c %c %c %c",
            nCount++,
            ThreadData.cBuf[0], // report id = 50
            ThreadData.cBuf[1],
            ThreadData.cBuf[2],
            ThreadData.cBuf[3],
            ThreadData.cBuf[4],
            ThreadData.cBuf[5],
            ThreadData.cBuf[6],
            ThreadData.cBuf[7],
            ThreadData.cBuf[8]);

        Show("Data", str);
        if(nCount > 500)
        {
            Clear();
            nCount = 0;
        }

        ::PostMessage(m_hReadThread, WM_READDATA, 0, 0);
    }

    return CDialog::DefWindowProc(message, wParam, lParam);
}

    case WM_READDATA:
        //ReadFile(ThreadData.hDev, ThreadData.cBuf, 9, &wByteRead, &ol);
        ThreadData.cBuf[0] = 50;
        bRet = HidD_GetFeature(ThreadData.hDev, ThreadData.cBuf, 9);
        //wResult = WaitForSingleObject(ThreadData.hReadFinished, 1000);
        if(/*wResult == WAIT_OBJECT_0*/ bRet == TRUE)
            ::PostMessage(ThreadData.hWnd, WM_THREADDATA, 0, 0);
        else if(/*wResult == WAIT_TIMEOUT*/ bRet == FALSE)
            ::PostMessage(hWnd, WM_READDATA, 0, 0);
        break;
