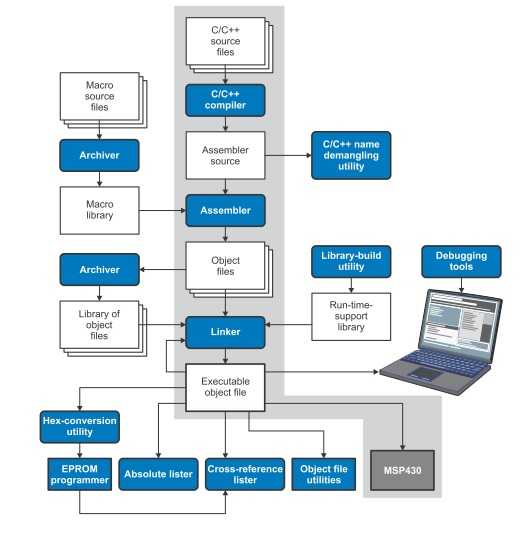

The following figure shows the MSP430 software development flow.

　　1)　　The shaded portion highlights the most common development path; the other portions are optional.

　　2)　　The other portions are peripheral functions that enhance the development process.

　　•　　The C/C++ compiler accepts C/C++ source code and produces MSP430 machine code object modules.

　　•　　The assembler translates assembly language source files into machine language object modules.

　　•　　The linker combines object files into a single executable object module.

　　•　　The archiver allows you to collect a group of files into a single archive file, called a library.

　　•　　The library information archiver allows you to create an index library of several object file library variants.

　　•　　You can use the library-build utility to build your own customized run-time-support library.

　　•　　The hex conversion utility converts object files to TI-Tagged, ASCII-Hex, Intel, Motorola-S, or Tektronix object format.

　　•　　The absolute lister uses linked object files to create .abs files.

　　•　　The cross-reference lister uses object files to produce a cross-reference listing showing symbols, their definition, and their references.

　　•　　The main product of this development process is a executable object file that can be executed in a MSP430 device.
