Android Support Design 库 之 Snackbar使用及源码分析

时间:2015-07-21 12:43:10      阅读:349      评论:0      收藏:0      [点我收藏+]

标签:

在谷歌提出 material design 之后,终于推出了 android.support.design 这个官方的material design库,这几天我也简单浏览了下这个库,基本上我们常用的组件都有了,从今天开始,就可以一步步替换掉

以前使用的github上的那些开源控件了,毕竟谷歌出品 才属精品~~另外分析这个design库的源码我认为是非常有意义的,android上的app 在以前各家都有各家的风格,但是在谷歌出了material design这门新的

设计语言以及官方的库以后,相信越来越多的app 会逐步优化自己的ui 来符合官方的标准,学习这个design库的源码可以让我们以后改写自定义控件的时候更加柔韧有余。

首先,来看一下这个官方的介绍。http://www.google.com/design/spec/components/snackbars-toasts.html#

这个文章系统的阐述了 snackbar和toast的区别和正确使用snackbar的方式。

我简单归纳如下:

1.比toast更加好,毕竟snackbar 可以响应点击事件

2.snackbar 同一时间有且只有一个在显示。

3.snackbar 上不要有图标

4.snackbar上action 只能有一个。

5.如果有悬浮按钮 floating action button的话,snackbar 在弹出的时候 不要覆盖这个button.

6.此外我个人认为snackbar 在一定程度上可以替代dialog的某些应用场景。比如以前网络不通的情况下 我们登陆失败,会给一个dialog提示,现在就可以用snackbar 来做这个有action的提示 更加方便快捷。

使用snackbar:

1.导入support design 库 (这一步在以后的design库的 控件文章里都会舍去)

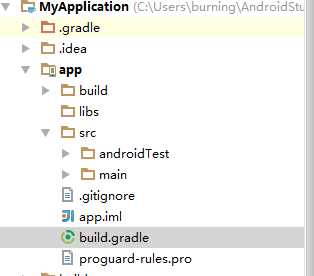

首先找到你app的build gradle文件

技术分享

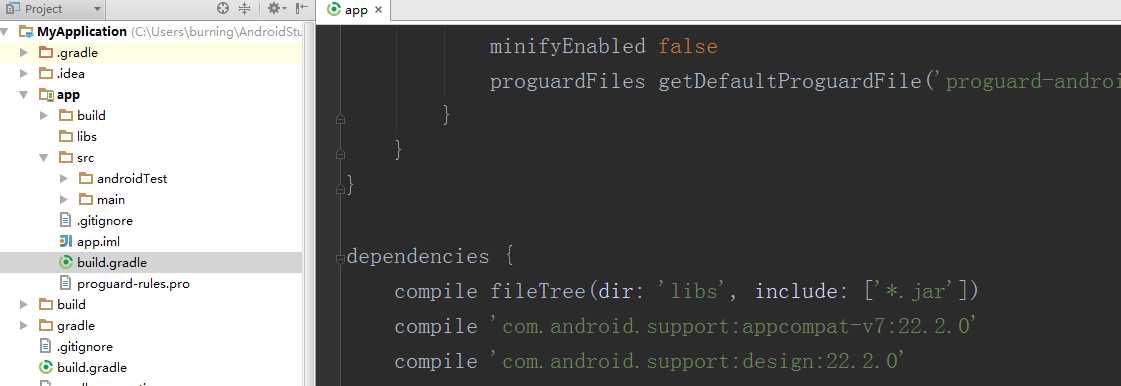

然后增加一个compile语句即可

compile ‘com.android.support:design:22.2.0‘

技术分享



2.编写xml文件以及java文件

 1 <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
 2     xmlns:tools="http://schemas.android.com/tools"
 3     android:layout_width="match_parent"
 4     android:layout_height="match_parent"
 5     android:paddingBottom="@dimen/activity_vertical_margin"
 6     android:paddingLeft="@dimen/activity_horizontal_margin"
 7     android:paddingRight="@dimen/activity_horizontal_margin"
 8     android:paddingTop="@dimen/activity_vertical_margin"
 9     tools:context=".MainActivity"
10     android:id="@+id/layout">
11
12
13     <!-- 因为snackbar 需要有一个父控件所以 我们暂时就用tv 来做他的父控件-->
14     <TextView
15         android:id="@+id/tv"
16         android:layout_width="match_parent"
17         android:layout_height="30dp"
18         android:layout_centerVertical="true"
19         android:gravity="center"
20         android:text="Bottom layout" />
21
22 </RelativeLayout>
 1 package com.example.burning.myapplication;
 2
 3 import android.os.Bundle;
 4 import android.support.design.widget.Snackbar;
 5 import android.support.v7.app.ActionBarActivity;
 6 import android.view.Menu;
 7 import android.view.MenuItem;
 8 import android.view.View;
 9 import android.widget.TextView;
10
11
12 public class MainActivity extends ActionBarActivity {
13
14     private TextView tv;
15
16     @Override
17     protected void onCreate(Bundle savedInstanceState) {
18         super.onCreate(savedInstanceState);
19         setContentView(R.layout.activity_main);
20         tv = (TextView) this.findViewById(R.id.tv);
21         tv.setOnClickListener(new View.OnClickListener() {
22             @Override
23             public void onClick(View v) {
24                 //这个地方第一个参数 传进去的是tv 但是实际上你无论传进去什么值 snackbar都一定是从屏幕的最底端出现的 原因在源码
25                 //分析那边可以看到
26                 Snackbar.make(tv, "connection error", Snackbar.LENGTH_LONG).setAction("retry", new View.OnClickListener() {
27                     @Override
28                     public void onClick(View v) {
29                         tv.setText("aleady click snackbar");
30                     }
31                 }).show();
32
33             }
34         });
35     }
36
37     @Override
38     public boolean onCreateOptionsMenu(Menu menu) {
39         // Inflate the menu; this adds items to the action bar if it is present.
40         getMenuInflater().inflate(R.menu.menu_main, menu);
41         return true;
42     }
43
44     @Override
45     public boolean onOptionsItemSelected(MenuItem item) {
46         // Handle action bar item clicks here. The action bar will
47         // automatically handle clicks on the Home/Up button, so long
48         // as you specify a parent activity in AndroidManifest.xml.
49         int id = item.getItemId();
50
51         //noinspection SimplifiableIfStatement
52         if (id == R.id.action_settings) {
53             return true;
54         }
55
56         return super.onOptionsItemSelected(item);
57     }
58 }

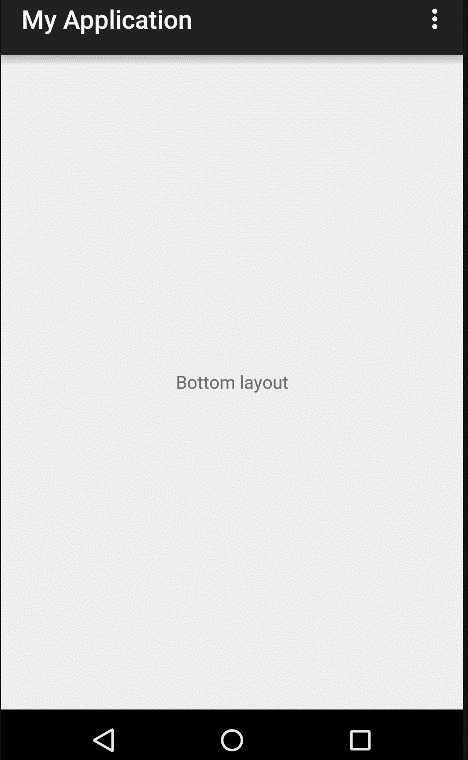

最后我们来看下效果

技术分享





 然后我们来看一下 如果和正常的FAB(悬浮按钮)在一起会有什么效果(注意这里的悬浮按钮我们也使用design库里的并不使用github上开源的)

先看一下xml文件

 1 <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
 2     xmlns:app="http://schemas.android.com/apk/res-auto"
 3     xmlns:tools="http://schemas.android.com/tools"
 4     android:layout_width="match_parent"
 5     android:layout_height="match_parent"
 6     android:paddingBottom="@dimen/activity_vertical_margin"
 7     android:paddingLeft="@dimen/activity_horizontal_margin"
 8     android:paddingRight="@dimen/activity_horizontal_margin"
 9     android:paddingTop="@dimen/activity_vertical_margin"
10     tools:context=".MainActivity">
11
12
13     <FrameLayout
14         android:id="@+id/layout"
15         android:layout_width="match_parent"
16         android:layout_height="match_parent">
17
18         <android.support.design.widget.FloatingActionButton
19             android:id="@+id/btnFloatingAction"
20             android:layout_width="wrap_content"
21             android:layout_height="wrap_content"
22             android:layout_gravity="bottom|right"
23             android:src="@drawable/ic_plus"
24             app:borderWidth="0dp"
25             app:fabSize="normal" />
26     </FrameLayout>
27 </RelativeLayout>

activity代码

 1 package com.example.burning.myapplication;
 2
 3 import android.os.Bundle;
 4 import android.support.design.widget.Snackbar;
 5 import android.support.v7.app.ActionBarActivity;
 6 import android.view.Menu;
 7 import android.view.MenuItem;
 8 import android.view.View;
 9 import android.view.ViewGroup;
10
11
12 public class MainActivity extends ActionBarActivity {
13
14     private ViewGroup layout;
15
16
17     @Override
18     protected void onCreate(Bundle savedInstanceState) {
19         super.onCreate(savedInstanceState);
20         setContentView(R.layout.activity_main);
21         layout = (ViewGroup) this.findViewById(R.id.layout);
22         layout.setOnClickListener(new View.OnClickListener() {
23             @Override
24             public void onClick(View v) {
25                 Snackbar.make(layout, "connection error", Snackbar.LENGTH_LONG).setAction("retry", new View.OnClickListener() {
26                     @Override
27                     public void onClick(View v) {
28                     }
29                 }).show();
30
31             }
32         });
33     }
34
35     @Override
36     public boolean onCreateOptionsMenu(Menu menu) {
37         // Inflate the menu; this adds items to the action bar if it is present.
38         getMenuInflater().inflate(R.menu.menu_main, menu);
39         return true;
40     }
41
42     @Override
43     public boolean onOptionsItemSelected(MenuItem item) {
44         // Handle action bar item clicks here. The action bar will
45         // automatically handle clicks on the Home/Up button, so long
46         // as you specify a parent activity in AndroidManifest.xml.
47         int id = item.getItemId();
48
49         //noinspection SimplifiableIfStatement
50         if (id == R.id.action_settings) {
51             return true;
52         }
53
54         return super.onOptionsItemSelected(item);
55     }
56 }

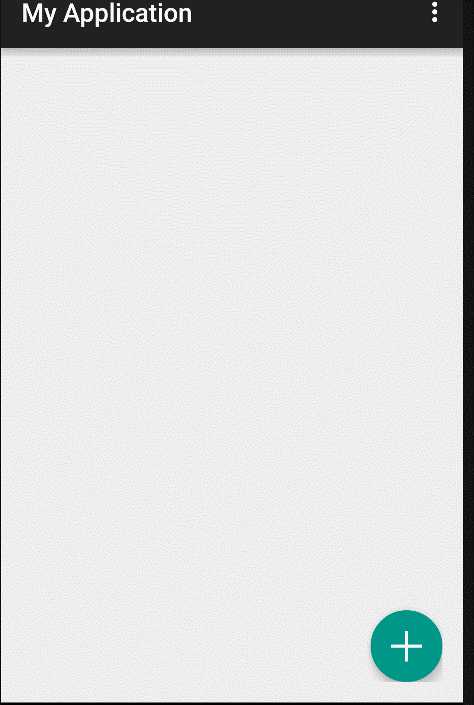

来看一下运行效果

技术分享

大家可以看到当我们的snackbar在弹出的时候 会覆盖到我们的FAB,那这体验是非常糟糕的,这里也给出一个完美的解决方案

其实也很简单用一下design库里的layout即可 java代码不需要改变 只要稍微改一下布局文件即可

 1 <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
 2     xmlns:app="http://schemas.android.com/apk/res-auto"
 3     xmlns:tools="http://schemas.android.com/tools"
 4     android:layout_width="match_parent"
 5     android:layout_height="match_parent"
 6     android:paddingBottom="@dimen/activity_vertical_margin"
 7     android:paddingLeft="@dimen/activity_horizontal_margin"
 8     android:paddingRight="@dimen/activity_horizontal_margin"
 9     android:paddingTop="@dimen/activity_vertical_margin"
10     tools:context=".MainActivity">
11
12
13     <android.support.design.widget.CoordinatorLayout
14         android:id="@+id/layout"
15         android:layout_width="match_parent"
16         android:layout_height="match_parent">
17
18         <android.support.design.widget.FloatingActionButton
19             android:id="@+id/btnFloatingAction"
20             android:layout_width="wrap_content"
21             android:layout_height="wrap_content"
22             android:layout_gravity="bottom|right"
23             android:src="@drawable/ic_plus"
24             app:borderWidth="0dp"
25             app:fabSize="normal" />
26     </android.support.design.widget.CoordinatorLayout>
27 </RelativeLayout>

就是换了一个新的layout而已。

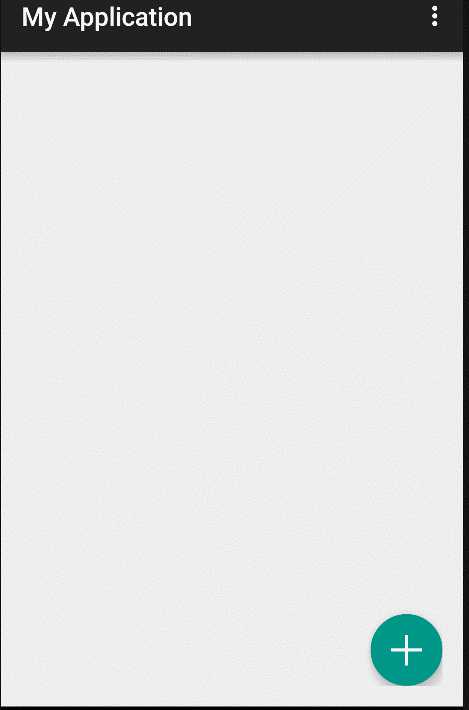

来看下运行的效果。



 技术分享



当然了 你要改变这个snackbar的背景色也是可以的 只需要

1  Snackbar sb=Snackbar.make(layout, "connection error", Snackbar.LENGTH_LONG).setAction("retry", new View.OnClickListener() {
2                     @Override
3                     public void onClick(View v) {
4                     }
5                 });
6                 //红色
7                 sb.getView().setBackgroundColor(0xfff44336);
8                 sb.show();



 基本的用法 要点就是这些,我们来看一下这个snackbar的源码   看看谷歌官方是如何编写 material design 风格控件的

这里我无法贴上全部源码 因为太多,只挑重要的流程说 可以从make开始。

 1  //这个地方就是构造函数
 2     Snackbar(ViewGroup parent) {
 3         this.mParent = parent;
 4         this.mContext = parent.getContext();
 5         LayoutInflater inflater = LayoutInflater.from(this.mContext);
 6         this.mView = (Snackbar.SnackbarLayout)inflater.inflate(layout.layout_snackbar, this.mParent, false);
 7     }
 8
 9     //这个地方就是我们调用的make函数 也就是整个类的一个入口 在这里可以看到 我们的代码转入了snackbar的构造函数
10     public static Snackbar make(View view, CharSequence text, int duration) {
11         //注意看这个地方调用了 findsuitableparent这个函数
12         Snackbar snackbar = new Snackbar(findSuitableParent(view));
13         snackbar.setText(text);
14         snackbar.setDuration(duration);
15         return snackbar;
16     }
17
18     public static Snackbar make(View view, int resId, int duration) {
19         return make(view, view.getResources().getText(resId), duration);
20     }
21
22     //这个函数其实作用就是无论你传进去的是什么view 我最终都会遍历到framlayout为止,因为activity的最外层实际上就是一个framlayout
23     //所以你在调用make函数的时候无论传什么值进去 snackabr都会从最底部弹出来 就是因为这个函数做了这样的工作 但是!!!!
    //如果在遍历到最顶部的framlayout之前 遇到了一个framelayout 那么就会从这个framlayout的底部弹出,而不会从屏幕的最下方弹出了。
24 //这个地方CoordinatorLayout的优先级比framlayout还要高 所以你如果穿进去的view是CoordinatorLayout的话 这个snackbar 就一定会从 25 //CoordinatorLayout 底部弹出了。如果你CoordinatorLayout的最底部恰好在屏幕中间 那么snackbar 就会从屏幕中间弹出 而不会从底部弹出 这一点一定要注意 26 @Nullable 27 private static ViewGroup findSuitableParent(View view) { 28 ViewGroup fallback = null; 29 30 do { 31 if(view instanceof CoordinatorLayout) { 32 return (ViewGroup)view; 33 } 34 35 if(view instanceof FrameLayout) { 36 if(view.getId() == 16908290) { 37 return (ViewGroup)view; 38 } 39 40 fallback = (ViewGroup)view; 41 } 42 43 if(view != null) { 44 ViewParent parent = view.getParent(); 45 view = parent instanceof View?(View)parent:null; 46 } 47 } while(view != null); 48 49 return fallback; 50 }

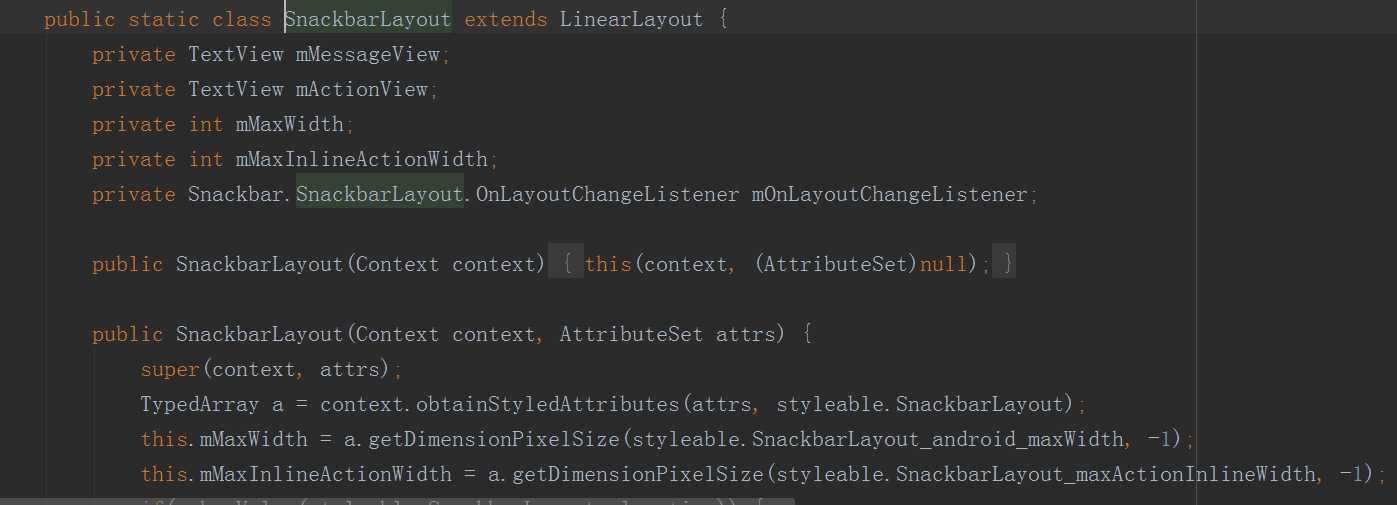

大家可以看一下第六行。实际上这个mView就是一个内部类的对象

1     private final Snackbar.SnackbarLayout mView;

技术分享

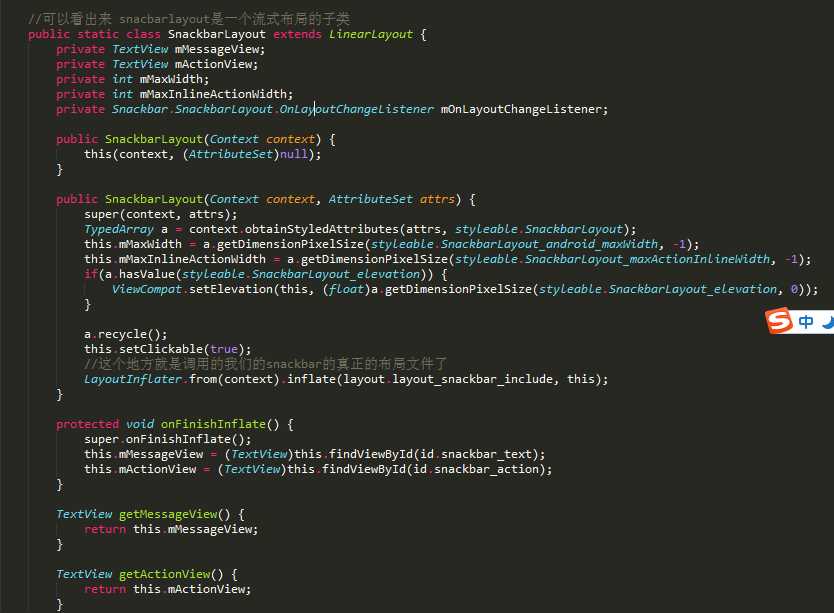

然后接着看第六行的xml文件(到这里其实我们也能猜到了 真正自定义view的snackbar是由snackbar的内部类snackbarlayout来完成的)





 1 <?xml version="1.0" encoding="utf-8"?>
 2 <!--
 3   ~ Copyright (C) 2015 The Android Open Source Project
 4   ~
 5   ~ Licensed under the Apache License, Version 2.0 (the "License");
 6   ~ you may not use this file except in compliance with the License.
 7   ~ You may obtain a copy of the License at
 8   ~
 9   ~      http://www.apache.org/licenses/LICENSE-2.0
10   ~
11   ~ Unless required by applicable law or agreed to in writing, software
12   ~ distributed under the License is distributed on an "AS IS" BASIS,
13   ~ WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
14   ~ See the License for the specific language governing permissions and
15   ~ limitations under the License.
16 -->
17
18 <!--注意看class那边的写法  那个$就是代表内部类的一个符号 这个技巧 以后我们自己自定义控件的时候也可以学习-->
19 <view xmlns:android="http://schemas.android.com/apk/res/android"
20       class="android.support.design.widget.Snackbar$SnackbarLayout"
21       android:layout_width="match_parent"
22       android:layout_height="wrap_content"
23       android:layout_gravity="bottom"
24       style="@style/Widget.Design.Snackbar" /><!-- From: file:/usr/local/google/buildbot/repo_clients/https___googleplex-android.googlesource.com_a_platform_manifest.git/lmp-mr1-supportlib-release/frameworks/support/design/res/layout/layout_snackbar.xml -->

继续看下内部类

技术分享

找到我们真正的snackbar的布局文件 注意这个地方讨巧的使用了merge标签 这是一个比较好的优化xml的 写法

 1 <?xml version="1.0" encoding="utf-8"?>
 2 <!--
 3   ~ Copyright (C) 2015 The Android Open Source Project
 4   ~
 5   ~ Licensed under the Apache License, Version 2.0 (the "License");
 6   ~ you may not use this file except in compliance with the License.
 7   ~ You may obtain a copy of the License at
 8   ~
 9   ~      http://www.apache.org/licenses/LICENSE-2.0
10   ~
11   ~ Unless required by applicable law or agreed to in writing, software
12   ~ distributed under the License is distributed on an "AS IS" BASIS,
13   ~ WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
14   ~ See the License for the specific language governing permissions and
15   ~ limitations under the License.
16 -->
17
18 <merge xmlns:android="http://schemas.android.com/apk/res/android">
19
20     <TextView
21             android:id="@+id/snackbar_text"
22             android:layout_width="wrap_content"
23             android:layout_height="wrap_content"
24             android:layout_weight="1"
25             android:paddingTop="@dimen/snackbar_padding_vertical"
26             android:paddingBottom="@dimen/snackbar_padding_vertical"
27             android:paddingLeft="@dimen/snackbar_padding_horizontal"
28             android:paddingRight="@dimen/snackbar_padding_horizontal"
29             android:textAppearance="@style/TextAppearance.Design.Snackbar.Message"
30             android:maxLines="@integer/snackbar_text_max_lines"
31             android:layout_gravity="center_vertical|left|start"
32             android:ellipsize="end"/>
33
34     <TextView
35             android:id="@+id/snackbar_action"
36             android:layout_width="wrap_content"
37             android:layout_height="wrap_content"
38             android:layout_marginLeft="@dimen/snackbar_extra_spacing_horizontal"
39             android:layout_marginStart="@dimen/snackbar_extra_spacing_horizontal"
40             android:layout_gravity="center_vertical|right|end"
41             android:background="?attr/selectableItemBackground"
42             android:paddingTop="@dimen/snackbar_padding_vertical"
43             android:paddingBottom="@dimen/snackbar_padding_vertical"
44             android:paddingLeft="@dimen/snackbar_padding_horizontal"
45             android:paddingRight="@dimen/snackbar_padding_horizontal"
46             android:visibility="gone"
47             android:textAppearance="@style/TextAppearance.Design.Snackbar.Action"/>
48
49 </merge><!-- From: file:/usr/local/google/buildbot/repo_clients/https___googleplex-android.googlesource.com_a_platform_manifest.git/lmp-mr1-supportlib-release/frameworks/support/design/res/layout/layout_snackbar_include.xml -->



到这里 主要的snackbar的一个加载流程就分析完毕了,很多诸如动画的代码部分 我就暂时不去分析他了,大家可以自己仔细分析。

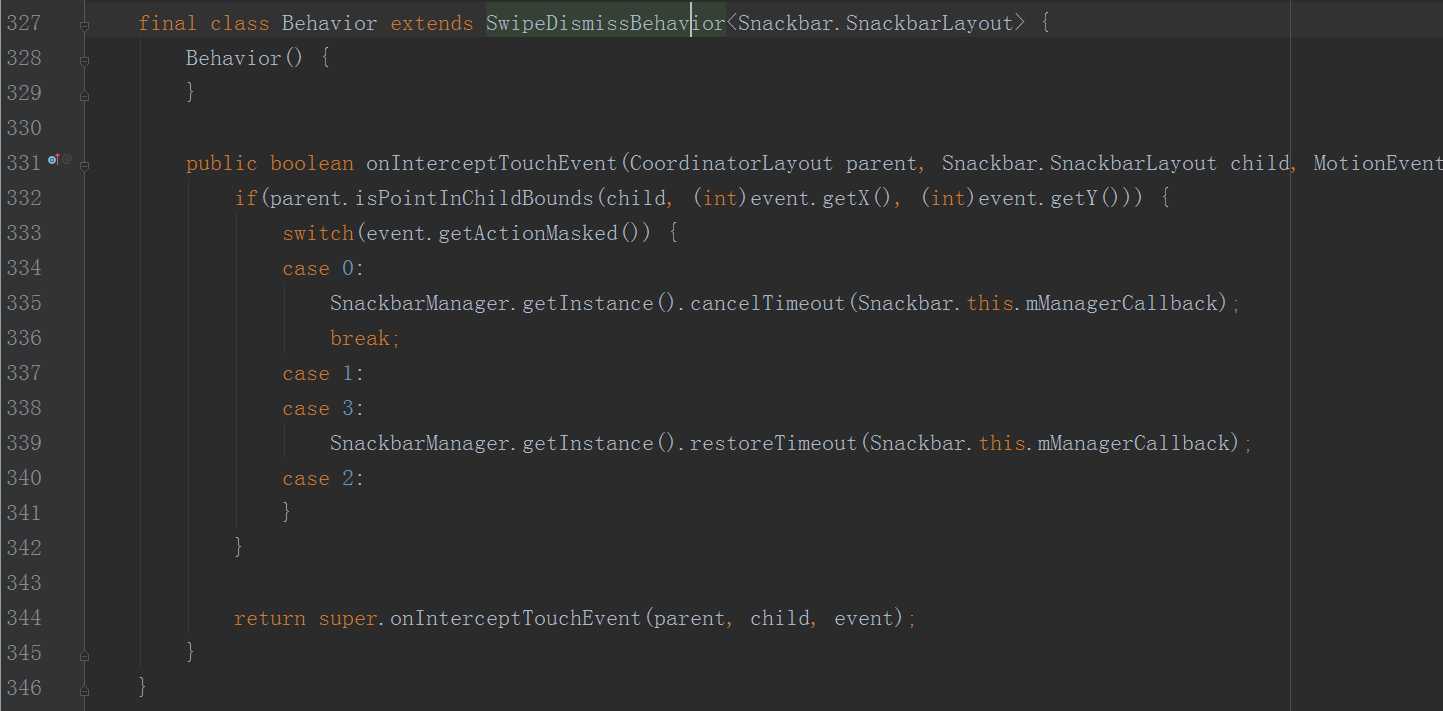

另外有心的同学可能发现了这么一个代码

技术分享



实际上Behavior 我个人认为是这次support design库里面最重要的一个东西,以后我会单独出来讲一下。基本上support design包里 每一个控件都有她的身影出没。



Android Support Design 库 之 Snackbar使用及源码分析

标签:

原文地址:http://www.cnblogs.com/punkisnotdead/p/4663885.html

(0)
(0)

举报
评论 一句话评论(0
登录后才能评论!
© 2014 mamicode.com 版权所有  联系我们:gaon5@hotmail.com
迷上了代码!
